Galvanized C-shaped steel refers to the use of high-strength steel plates, cold-formed, and roll-formed, with uniform wall thickness, excellent cross-sectional properties, and high strength. Our company can produce all sizes c channel as customized, including 2, 3, 4, 6, 8 inch, etc. And if you have special drawing, contact us. we will production according to your drawing.

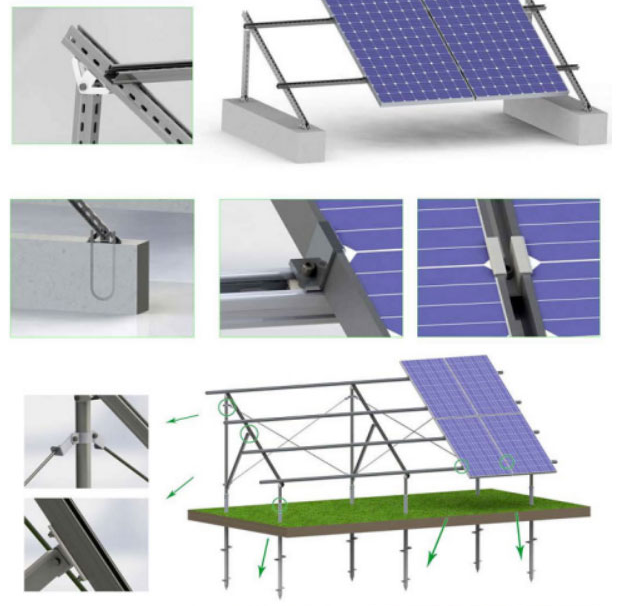

The material for manufacturing the photovoltaic array support of the device should be able to withstand wind and rain corrosion and various corrosion. The C shaped beams have excellent bending resistance and easy to install. They are widely used as supports for roofs and walls of factories, photovoltaic solar mounts, garages, and other large and medium-sized buildings.
C-channel size table for displaying the dimensions and cross-section characteristics of steel beams. The C profile is designated by the letter C.
Type |
Section Size(mm) |
||||
H |
B |
A |
T |
||
C80 |
80 |
40 |
15-20 |
2.0-3.0 |
Q195-Q235
|
C100 |
100 |
50 |
15-20 |
2.0-3.0 |
|
C120 |
120 |
50 |
15-20 |
2.0-3.0 |
|
C140 |
140 |
50 |
15-20 |
2.0-3.0 |
|
C160 |
160 |
50 |
15-20 |
2.0-3.0 |
|
C160 |
160 |
60 |
15-20 |
2.0-3.0 |
|
C180 |
180 |
60 |
15-20 |
2.0-3.0 |
|
C200 |
200 |
60 |
15-20 |
2.0-3.0 |
|
C220 |
220 |
60 |
15-20 |
2.0-3.0 |
|
C220 |
220 |
70 |
15-20 |
2.0-3.0 |
|
C250 |
250 |
70 |
15-20 |
2.0-3.0 |
|
C250 |
250 |
80 |
15-20 |
2.0-3.0 |
|
C300 |
300 |
80 |
15-20 |
2.0-3.0 |
|

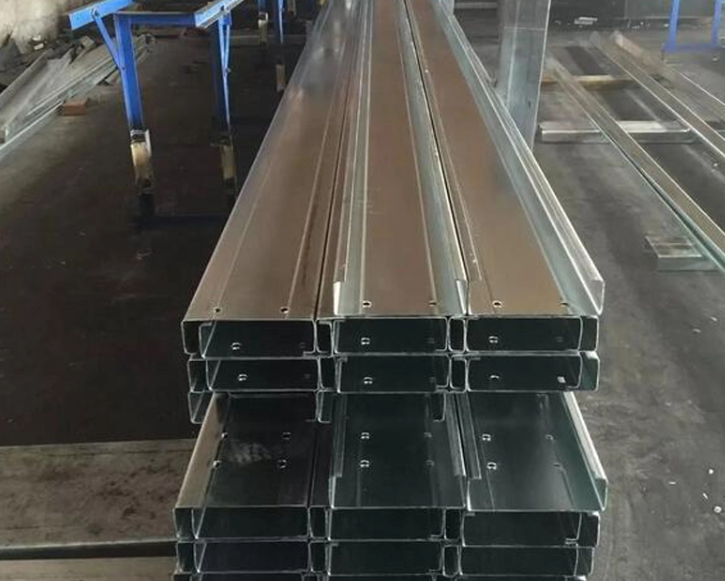

The quality details of photovoltaic solar power c section purlin brackets:
