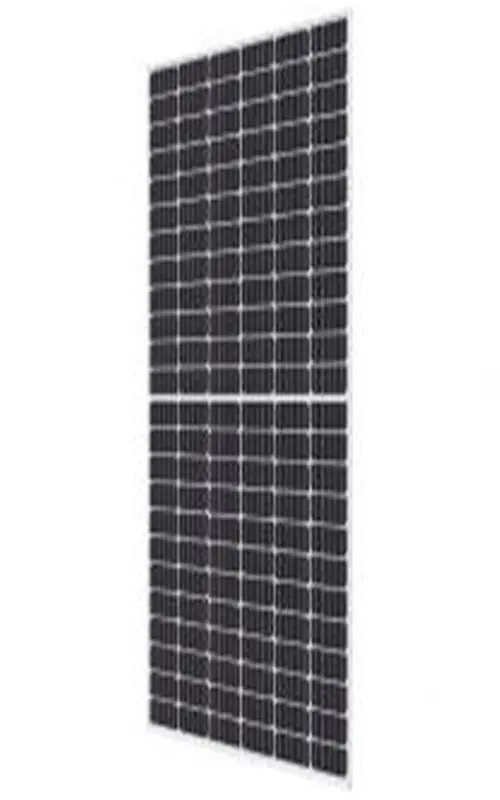

SINO GREEN HiA-S400HI 400W Solar Panel
SINO GREEN HI Series
144 half cells (2 parallel x 72 half cells in series)
Anti-reflection coated glass
Sturdy aluminum alloy type 6063 frame
4mm² (12AWG) cables with weatherproof connectors
IP67 weatherproof junction box (UL Listed)
3 bypass diodes to prevent power decrease by partial shade
The HiAS400HI features a clear anodized aluminum frame
Fast and inexpensive mounting, delivered ready for connection
Made in SINO GREEN Heavy Industries' Factory in Korea
more low light powerMore Low Light Power GenerationUL 1500VUL 1,500V Saves BOS CostsFor Commercial & Utility Applications
Front : High transmission low-iron tempered glass
Encapsulant : EVA
Back Sheet : Weatherproof film
Frame: Anodized aluminum alloy type 6063
PERL technology provides ultra-high efficiency with better performance in low irradiation. Maximizes installation capacity in limited space.
Anti-LID / PID
Both LID (Light Induced Degradation) and PID (Potential Induced Degradation) are strictly eliminated to ensure higher actual yield during the module's lifetime.
Tempered glass and reinforced frame design withstand rigorous weather conditions such as heavy snow and strong wind.
Global brand with powerful financial strength provides a reliable 25-year warranty.
Various tests under harsh environmental conditions such as ammonia and salt-mist passed.
UL / VDE Test Labs
SINO GREEN’s R&D center is an accredited test laboratory of both UL and VDE.
SINO GREEN Heavy Industries HiAS400HI Solar Panel Warranty
SINO GREEN made in Korea SINO GREEN Solar Cells
Made in Korea
10-Year Product Warranty
· On materials and workmanship
25-Year Performance Warranty
· Initial year: 97%
· Linear warranty after second year: with 0.7% annual degradation
80% is guaranteed up to 25 years
SINO GREEN HiS RI Series Solar Panel Certifications
· IEC 61215 and IEC 61730 New Standard by TUV SUD
· UL 1703 Listed by UL, Type 1(for Fire Class A)
• Output power tolerance +3/-0 %
• ISO 9001:2000 and ISO 14001:2004 Certified
• Advanced Mechanical Test (5,400 Pa)
• IEC 62716 (Ammonia Corrosion Resistance Test) Passed
• IEC 61701 (Salt Mist Corrosion Test) Passed
• Potential-Induced Degradation (PID) Test Passed
Accredited Test Lab
• VDE (Test Data Acceptance Program)
• UL (Witness Test Data Program)
