SINO Green Energy HiA-S405HI 405W Solar Panel

SINO GREEN Heavy Industries HHI Green Energy

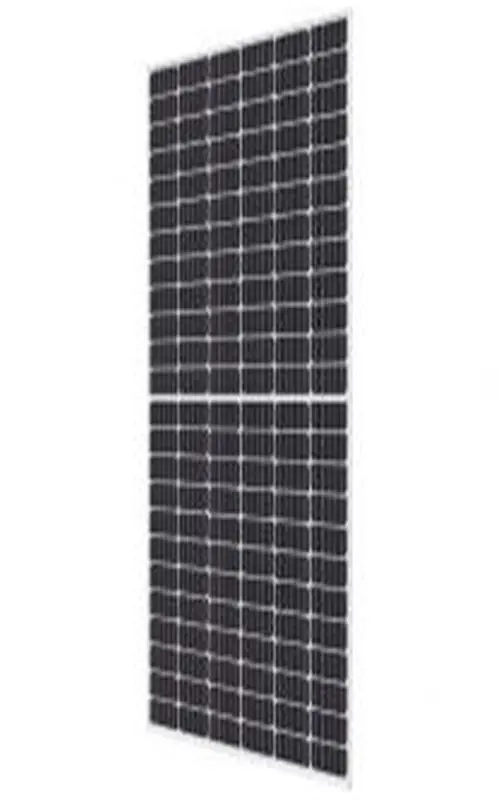

SINO GREEN HiA-S405HI 405W Solar Panel

SINO GREEN HI Series

144 half cells (2 parallel x 72 half cells in series)

Anti-reflection coated glass

Sturdy aluminum alloy type 6063 frame

4mm² (12AWG) cables with weatherproof connectors

IP67 weatherproof junction box (UL Listed)

3 bypass diodes to prevent power decrease by partial shade

The HiAS405HI features a clear anodized aluminum frame

Fast and inexpensive mounting, delivered ready for connection

Made in SINO GREEN Heavy Industries' Factory in Korea

more low light powerMore Low Light Power GenerationUL 1500VUL 1,500V Saves BOS Costscommercial utility industrialFor Commercial & Utility Applications

ground mounted SINO GREEN solar panels

Construction

Front : High transmission low-iron tempered glass

Encapsulant : EVA

Back Sheet : Weatherproof film

Frame: Anodized aluminum alloy type 6063

HiA-S405HI Features

PERL

PERL Technology

PERL technology provides ultra-high efficiency with better performance in low irradiation. Maximizes installation capacity in limited space.

Anti LID Anti PID

Anti-LID / PID

Both LID (Light Induced Degradation) and PID (Potential Induced Degradation) are strictly eliminated to ensure higher actual yield during the module's lifetime.

mechanical strength

Mechanical Strength

Tempered glass and reinforced frame design withstand rigorous weather conditions such as heavy snow and strong wind.

warranty

Reliable Warranty

Global brand with powerful financial strength provides a reliable 25-year warranty.

corrosion resistant

Corrosion Resistant

Various tests under harsh environmental conditions such as ammonia and salt-mist passed.

UL

UL / VDE Test Labs

SINO GREEN’s R&D center is an accredited test laboratory of both UL and VDE.

SINO GREEN Heavy Industries HiAS405HI Solar Panel Warranty

SINO GREEN made in Korea SINO GREEN Solar Cells

Made in Korea

10-Year Product Warranty

· On materials and workmanship

25-Year Performance Warranty

· Initial year: 97%

· Linear warranty after second year: with 0.7% annual degradation

80% is guaranteed up to 25 years

SINO GREEN HiS RI Series Solar Panel Certifications

· IEC 61215 and IEC 61730 New Standard by TUV SUD

· UL 1703 Listed by UL, Type 1(for Fire Class A)

• Output power tolerance +3/-0 %

• ISO 9001:2000 and ISO 14001:2004 Certified

• Advanced Mechanical Test (5,400 Pa)

• IEC 62716 (Ammonia Corrosion Resistance Test) Passed

• IEC 61701 (Salt Mist Corrosion Test) Passed

• Potential-Induced Degradation (PID) Test Passed

Accredited Test Lab

• VDE (Test Data Acceptance Program)

• UL (Witness Test Data Program)
