SINO GREEN Q CELLS Q.PEAK DUO BLK-G5 315 315W All-Black Solar Panel

STC Rating: 315.0 Watts
PTC Rating: 292.2
Open Circuit Voltage (Voc): 40.29 Volts
Payment Terms: TT , LC , Others
Tags:
STC Rating 315.0 Watts
PTC Rating292.2
Open Circuit Voltage (Voc)40.29 Volts
Payment TermsTT , LC , Others
Q CELLS Q.PEAK

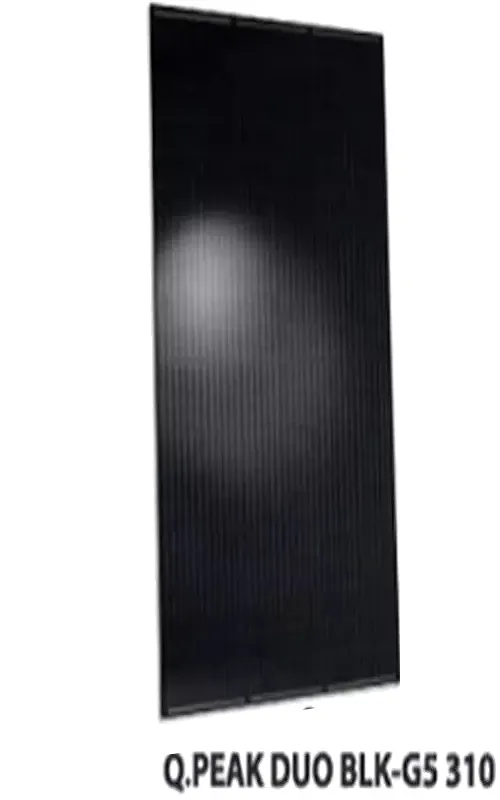

Q CELLS Q.PEAK DUO BLK-G5 315 315W All-Black Solar Panel

Q.PEAK BLK-G5 all-black frame and backsheet

The Q CELLS Q.PEAK DUO BLK-G5 315 all-black solar panel impresses with its outstanding visual appearance. This monocrystalline solar panel has particularly high performance on a small surface thanks to the innovative Q.ANTUM DUO Technology.


The front surface of the Q CELLS Q.PEAK DUO BLK-G5 315 is completely black and enhances the visual appearance of even the most exclusive residential system. The Q CELLS Anti LID Technology eliminates light induced degradation (LID), which can greatly reduce system performance. Other conventional monocrystalline solar cells will lose much of their initial performance, once exposed to sunlight. With the Q.PEAK DUO BLK-G5 315 this is not the case, thanks to Anti LID Technology.


Q.PEAK DUO BLK-G5 Features

BLK solar panel system

120 half-cut monocrystalline Q.ANTUM DUO solar cells

Black backsheet for a sleek all-black appearance

Thermally pre-stressed anti-reflective glass

Black anodized aluminum frame

4mm² (12AWG) cables with MC4 type connectors

Split decentralized IP67 weatherproof junction boxes

Q Cells Q.Antum technology developed in Germany

Certified for high snow (5400 Pa) and wind loads (4000 Pa)

The Q.PEAK BLK-G5 315 has at least a 18.7% efficiency.


Q.PEAK DUO BLK-G5 from Q CELLS

The state-of-the-art Q.PEAK BLK-G5 solar module from Q CELLS impresses thanks to innovative Q.ANTUM DUO Technology, which enables particularly high performance on a small surface.


Q.ANTUM's world-record-holding cell concept has now been combined with state-of-the-art circuitry half cells and a six-busbar design, thus achieving outstanding performance under real conditions - both with low-intensity solar radiation as well as on hot, clear summer days.
