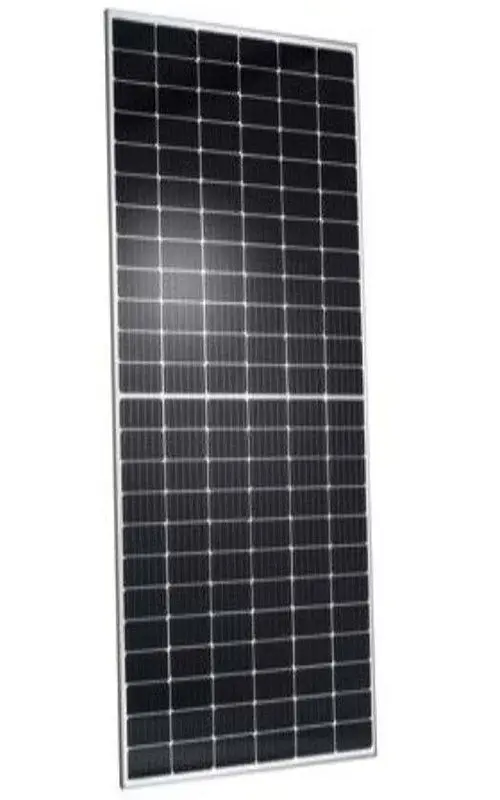

Q.PEAK DUO SINO GREEN5.2 390 390W Solar Panel

Silver Frame

The new high-performance module Q.PEAK DUO SINO GREEN5.2 390 is the ideal solution for commercial and utility applications thanks to a combination of its innovative cell technology Q.ANTUM and cutting edge cell interconnection. This 1500 V IEC/UL solar module with its 6 busbar cell design ensures superior yields while having a very low LCOE.

Hanwha enhanced low-light performance and the output of Q CELLS across a wide range of temperatures for Q.PEAK DUO solar panels to rival traditional crystalline technologies.

144 Q.ANTUM half-cut monocrystalline solar cells by Q CELLS

Efficient 6-busbar design

Thermally pre-stressed anti-reflective glass

Silver anodized aluminum frame

4mm² (12AWG) cables with MC4 type connectors

IP67 weatherproof junction boxes w/ bypass diodes

Q Cells Q.Antum technology developed in Germany

This Q.PEAK DUO SINO GREEN5.2 390 has a 19.9% module efficiency.

Q.Peak DUO SINO GREEN5.2 Q

Q.PEAK DUO SINO GREEN5.2 from Q CELLS

This state-of-the-art Q.PEAK DUO SINO GREEN5.2 solar module from Q CELLS impresses thanks to innovative Q.ANTUM DUO Technology, which enables particularly high performance on a small surface.

Q.ANTUM's world-record-holding cell concept has now been combined with state-of-the-art circuitry half cells and a six-busbar design, thus achieving outstanding performance under real conditions - both with low-intensity solar radiation as well as on hot, clear summer days.
