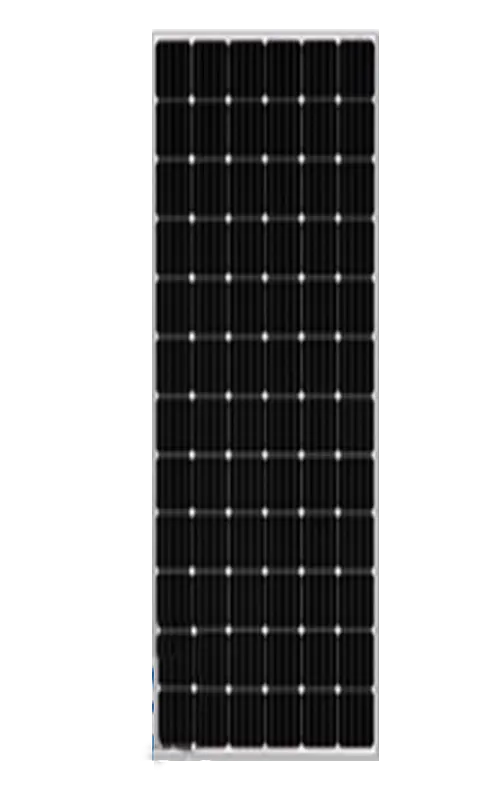

SINO GREEN HiS-S350TI 350 Watt Solar Panel

72 SINO GREEN PERL monocrystalline solar cells in series

4mm² (12AWG) cables with weatherproof connectors

IP67 weatherproof junction box

3 bypass diodes to prevent power decrease by partial shade

The HiS-S350TI features an anodized aluminum frame

Made in SINO GREEN Heavy Industries' Factory in Korea

17.9% module efficiency.

SINO GREEN PERL solar cells use Local Back Surface Field (LBSF) technology on the back side.

Construction

Front : High transmission low-iron tempered glass

Encapsulant : EVA

Back Sheet : Weatherproof film

Frame: Clear anodized aluminum alloy type 6063

SINO GREEN PERL Cell Benefits

PERL cells are high-efficient monocrystalline cells developed by SINO GREEN Heavy Industries which adopt LBSF (Local Back Surface Field) technology on the back side.

Front Shallow Emitter Structure

Enhanced short wavelength response

Passivation and Back Reflect Layer

Enhanced long wavelength response

Local Back Surface Field Structure

Minimization of back contact area

Thoroughly Tested by SINO GREEN

Field Performance Test

SINO GREEN conducts field performance tests at their factory in South Korea.

Module Aging Test / Inverter Motion Test

Generation Test Per Racking

Web Monitoring Test / Tracking System (Double Axis)

Tracking System / Fixed System

Reliability Test	IEC Standards	Hyundai Standards
UV Exposure Test	15kWh/m²	Long Term: 1,250kWh/m² Desert Condition: 3,250kWh/m²
Thermal Cycling Test	TC 200 Cycles / HF 10 Cycles	TC 600 Cycles / HF 30 Cycles
Damp Heat Test	1,000 hours	3,000 hours



Safety Test
HHI Conducts insulation, wet leakage current, mechanical load, hail and hot spot endurance tests to evaluate the safety of their solar panels.

• Wet Leakage Current Test
• Hail Test
• Hot Spot Endurance Test
• Mechanical Load Test
