Home / 72 Cell Solar Panels / SINO GREEN 360N2W-B3 Solar Panel

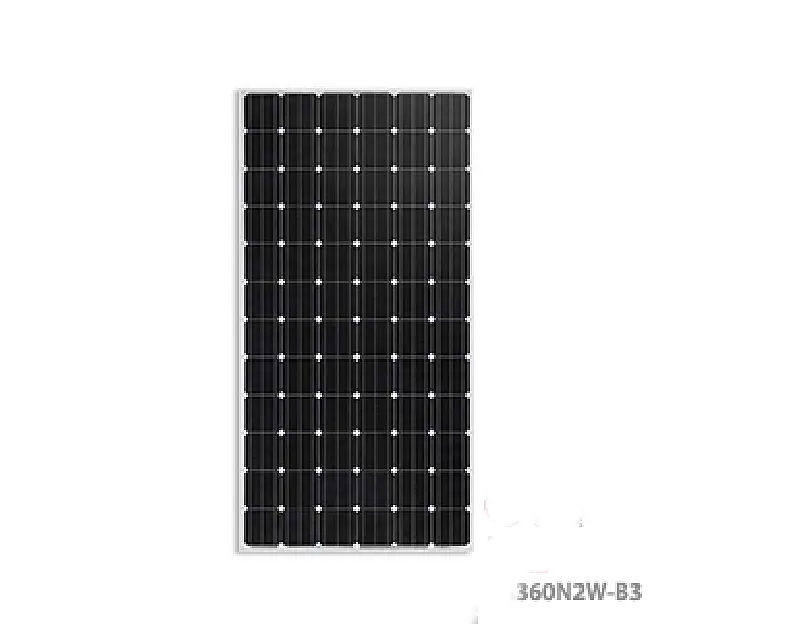

SINO GREEN 360N2W-B3 Solar Panel

STC Rating: 360.0 Watts
Open Circuit Voltage (V) : 48.3 Volts
PTC Rating : 328.9
Short Circuit Current (A) : 9.84 Amps
Tags:
STC Rating360.0 Watts
Open Circuit Voltage (V) 48.3 Volts
PTC Rating 328.9
Short Circuit Current (A) 9.84 Amps
Model Number 360N2W-B3
STC Rating 360.0 Watts
PTC Rating 328.9
Open Circuit Voltage (Voc) 48.3 Volts
Short Circuit Current (Isc) 9.84 Amps
Frame Color Black
Origin Korea
Power Tolerance -0 / +3%
Module Efficiency 18.4%
Area 21.09 ft²
Weight 44.75 lbs.
Length 77.17 in.
Width 39.37 in.
Height 1.81 in.


360N2W-B3 solar panels are remarkable 72 cell solar panels designed to deliver long-lasting power, efficiency and reliability.


solar panels , adopts Cello technology. Cello technology replaces 3 busbars with 12 thin wires to enhance power output and reliability. demonstrates SINO GREEN efforts to increase customer's values beyond efficiency. It features enhanced warranty, durability, performance under real environment, and aesthetic design suitable for roofs.


Solar module using high-efficiency  monocrystalline cells

Enhanced performance warranty

Aesthetically pleasing on any roof

Very-high power output per square foot


360N2W-B3 Benefits


Enhanced Performance Warranty


It has an enhanced performance warranty. The annual degradation has fallen from -0.7%/yr to -0.6%/yr. Even after 25 years, the cell guarantees 2.4%p more output than the previous NeON™modules.



High Power Output


Compared with previous models, it has been designed to significantly enhance its output efficiency making it efficient even in limited space.

Aesthetically Pleasing Roof

It has been designed with aesthetics in mind; thinner wires that appear all black at a distance. The product can increase the value of a property with its modern design.

Outstanding Durability

With its newly reinforced frame design, LG has extended the warranty of the NeON 2 from 15 years to 25 years, including labor. In addition,  NeON 2 can endure a front load up to 5400 Pa, and a rear load up to 4300 Pa.

Better Performance On Sunny Days

now performs even better on sunny days thanks to its improved temperature coefficient.

zero lid solar cell


360N2W-B3 Solar Panel Review

Quality-assurance of  NeON 2 solar panels is a top priority, that's why their solar panels are created using the most technologically advanced processes available. LG's state-of-the-art manufacturing facilities are designed to produce high quality, high performance cell panels that come ready to perform.

NeOn 2 Solar Cell Process

Inspection

Each wafer is thoroughly examined and measured to eliminate defects, so only the best-quality wafers are selected.


Wet Etching

Selected wafers then undergo a wet etching process which surfaces are immersed in acidic (multi) and alkaline (mono) solutions to help reduce light reflection.


Diffusion

N-type emitters are formed by loading P-element POCI3 gas into P-type wafers.


AR Coating

NeON 2 wafers are then coated with an anti-reflective SiNx:H film through a PECVD method using SiH4 & NH3 to dilute reflection and improve passivation.


Metallization

Metallic electrodes are composed to gather activated electrical carriers (electrons and holes) for each cell.


Sorting

Cells are finally measured and sorted by efficiency and classified by level of defect, color and electrical characteristics.


Solar Panel Process


solar panels are expertly crafted to deliver optimum output and ensure reliable operation by using a number of different methods:


Tabbing

Each incoming wafer is investigated again to eliminate any faults and defects.


Busing

Cells are then welded with strings by busing ribbons to meet the required power output.


Lay Up

Cells are assembled with layers of glass, EVA film and back sheet to protect cells from external damage.

Lamination

These layered modules are then encapsulated to prevent cells from water infiltration.


Framing

Modules are installed with a junction box for electrical connection and framed to ensure mechanical strength.


Simulation

Each NeON 2 72 cell 360N2W-B3 solar panel is finally simulated for output performance and classified accordingly before completion.
