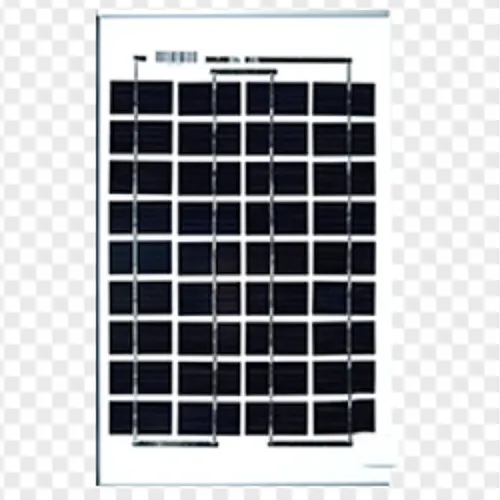

Sino Green 410M 10W BP SG10M Solar Panel

Model Number	SG-410M
STC Rating	10.0
Module Cell Type	Monocrystalline
Open Circuit Voltage (V)	21.0
Short Circuit Current (A)	.65
Frame Color	Silver
Origin	Hong Kong
Power % ±	-10/10
(W/ft²)	8.21
Module Efficiency	8.8%
Area (ft²)	1.2
Weight (lbs)	3.3
Length (in)	16.57
Width (in)	10.58
Height (in)	0.91

Sino Green 410M 10W BP SG10M Solar Panel

Multiple mounting possibilities

Multimount frame allows even greater flexibility in mounting. Positioned parallel to the edge and back of the module,

its dual channels accept either M8 or 5/16" hex-head bolts, allowing the module to be mounted from the side or back.

Easier bolt management

Bolts may be located anywhere along the channels; the channel groove is specially designed to prevent the bolt

from rotating when tightening, allowing installation with just one wrench.

Long cable for easier battery connections.

A 4.6 meter PVC-jacketed AWG 18-2 polarized cable is potted into the fully sealed junction box located on the module back.

The module's electrical connections are sealed for prevention against corrosion and moisture penetration.

Built to last

From mountaintops to off-shore platforms, on weather stations in the bitter cold of Antarctica and on telephone signal

repeaters in the hot Australian outback, the technology has been proven in the harshest environments.

Remote Industrial Applications:

Remote telemetry

Cathodic protection

Instrumentation systems

Security sensors

Signals

Oil metering

Water metering

Residential gate openers

Navigation aids

Obstruction lights

SG410M Certifications

Certified according to the extended version of the IEC 61215 (ed. 2), EC 61215:2005-08

(Crystalline silicon terrestrial photovoltaic modules - Design qualification and type approval)

Certified according to IEC 61730-1 and IEC 61730-2 (ed. 1), EN 61730-1:2007-05 and EN 61730-2:2007-05.

(photovoltaic module safety qualification, requirements for construction and testing).

Listed to UL 1703 & ULC ORD-C1703 Standard for Safety by Intertek ETL. Class C Fire Rating.

Approved by Intertek ETL according to FM 3611, Dec 2004, and according to CAN/CSA C22.2 No. 213-M1987,

1st Edition, Reaffirmed 2004, for use in a Class I Division 2, Group A, B, C, D Hazardous (Classified) Location.

SG410M PV Module Warranty

Free from defects in materials and workmanship for 2 years

90% Min power output for 12 years

25 year warranty optional

*Refer to limited warranty certificate for terms and conditions

SG140J BP SX10M Equivalent Solar Panel Review

15ft. 2 Conductor Cable

A 15' PVC-jacketed AWG 18-2 polarized cable is potted into the fully sealed junction box located on the module back.

The module’s electrical connections are sealed for prevention against corrosion and moisture penetration.

Versatile Multimount Frame

Multimount frame allows even greater flexibility in mounting. Positioned parallel to the edge and back of the module,

its dual channels accept either M8 or 5/16" hex-head bolts, allowing the module to be mounted from the side or back.
