SINO GREEN-Flat Roof Ballasted Mounting System

Project Site:: Flat roof

Max Building Height:: Up to 20m

Wind Load:: 42m/s

Snow Load:: 1.0kn/㎡

Tags:

Detail

Project Site:： Flat roof

Max Building Height:： Up to 20m

Wind Load:： 42m/s

Snow Load:： 1.0kn/㎡

Applicable Module:	Frame / frameless, crystalline/ thin film module
Module Orientation:	Landscape
Standard:	AS/NZS 1170, MCS, JIS &SGS
Material:	Q235&SUS304

Product Features

1. Ballasted Mounting System are widely used for both crystalline and thin film module

2. Easy & quick installation

3. Few components and highly assembled

4. All System components are made with high quality HDG& stainless steel

5. The arrays are connected together

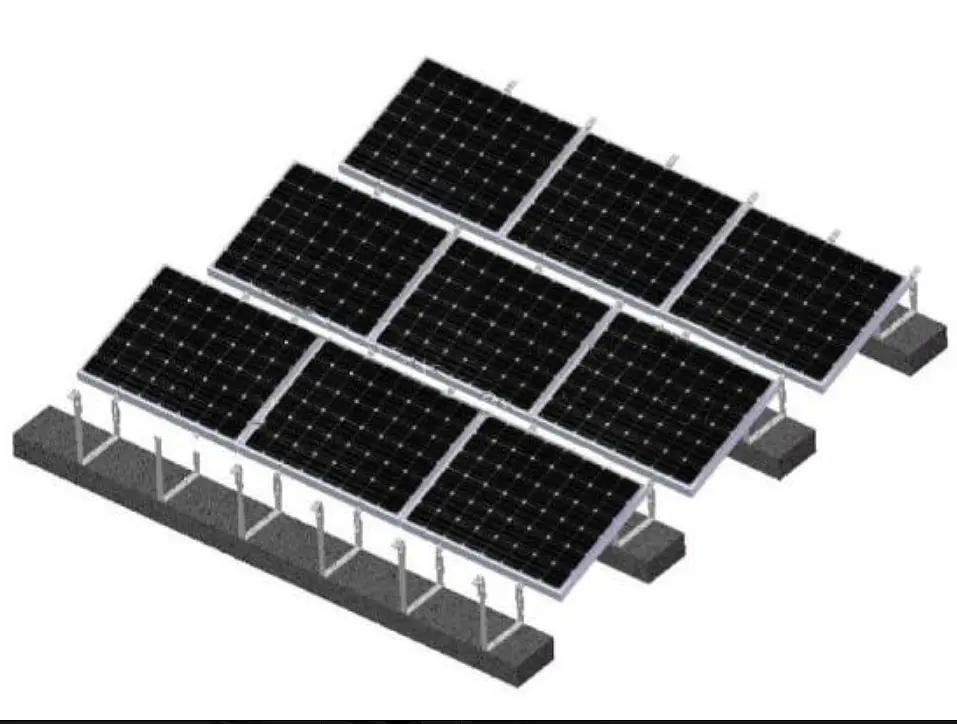

System Overview

Key Components

Ballasted Mount- Base

Front Leg

Rear Leg

End Clamp

Project

1.35MW Flat Roof Project

360KW Ballasted Flat Roof Mount
