SINO GREEN S350RI 350W 4BB Solar Panel

STC Rating: 350.0 Watts
Open Circuit Voltage (Voc): 47.1 Volts
PTC Rating: 317.6
Short Circuit Current (Isc): 9.6 Amps
Tags:
STC Rating350.0 Watts
Open Circuit Voltage (Voc)47.1 Volts
PTC Rating317.6
Short Circuit Current (Isc)9.6 Amps
Model Number S350RI
STC Rating 350.0 Watts
PTC Rating 317.6
Open Circuit Voltage (Voc) 47.1 Volts
Short Circuit Current (Isc) 9.6 Amps
Frame Color Clear Anodized Aluminum
Cell Type Monocrystalline
Origin Korea
Power Tolerance -0 / +3%
Module Efficiency 17.9%
Area 21.05 ft²
Weight 50.5 lbs.
Length 77.17 in.
Width 39.29 in.
Height 1.57 in.

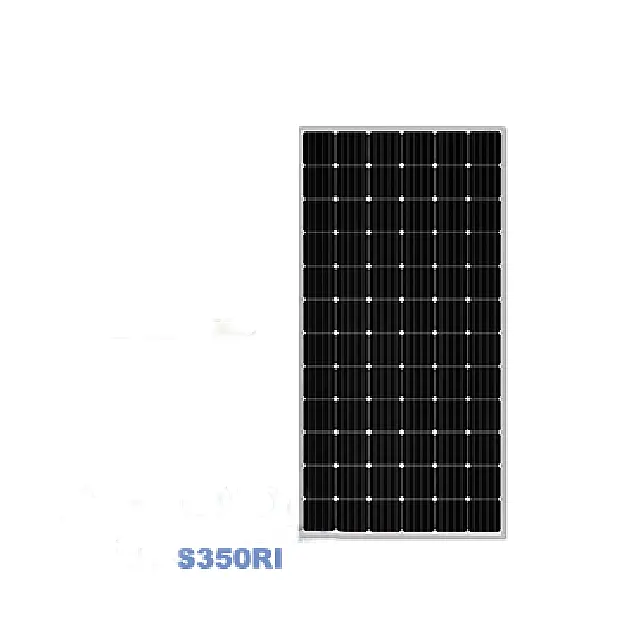

S350RI 350W Solar Panel

72 Hyundai monocrystalline solar cells in series

Anti-reflection coated glass

Sturdy aluminum alloy type 6063 frame

4mm² (12AWG) cables with weatherproof connectors

IP67 weatherproof junction box (UL Listed)

3 bypass diodes to prevent power decrease by partial shade

The S350RI features a clear anodized aluminum frame

Fast and inexpensive mounting, delivered ready for connection

Made in Hyundai Heavy Industries' Factory in Korea

16.9% module efficiency.

Construction

Front : High transmission low-iron tempered glass

Encapsulant : EVA

Back Sheet : Weatherproof film

Frame: Black anodized aluminum alloy type 6063

Solar Cell Technology

PERL cells are high-efficient monocrystalline cells which adopt LBSF (Local Back Surface Field) technology on the back side. PERL technology provides ultra-high efficiency with better performance in low sunlight. This higher efficiency allows installation capacity in more limited space.


Front Shallow Emitter Structure

Enhanced short wavelength response


Passivation and Back Reflect Layer

Enhanced long wavelength response


Local Back Surface Field Structure

Minimization of back contact area


Low LID / PID

Both LID (Light Induced Degradation) and PID (Potential Induced Degradation) are strictly eliminated to ensure higher actual yield during lifetime.

S350RI Solar Panel Warranty

10-Year Product Warranty

· 10 years for product defect

25-Year Performance Warranty

• 10 years for 90 % of warranted min. power

• 25 years for 80 % of warranted min. power


Solar Panel Certifications

• IEC 61215 (Ed.2) and IEC 61730 by VDE

• UL listed (UL 1703), Type 1 for Class A Fire Rating

• Output power tolerance +3/-0 %

• ISO 9001:2000 and ISO 14001:2004 Certified

• OHSAS 18001:2007 Certified

• Advanced Mechanical Test (5,400 Pa)

/ Mechanical Load Test (40 lbs/ft2) Passed (UL)

• IEC 62716 (Ammonia Corrosion Resistance Test) Passed

• IEC 61701 (Salt Mist Corrosion Test) Passed

• Potential-Induced Degradation (PID) Test Passed

(85˚C / 85 % / 600 hr-PVEL)

Accredited Test Lab

• VDE (Test Data Acceptance Program)

• UL (Witness Test Data Program)


Thoroughly Tested

Performance Test

It conducts a maximum power, temperature coefficient, low irradiation, NOCT, field test in order to evaluate performance of Hyundai's solar panels.

Solar Simulator Test

Maximum Power Test

EL Test

Field Installation Test

NOCT

Field Test for Roof

Field Performance Test

It conducts field performance tests at their factory in South Korea.

Module Aging Test / Inverter Motion Test

Generation Test Per Racking

Web Monitoring Test / Tracking System (Double Axis)

Tracking System / Fixed System

PV Tower System / Fixed System

Reliability Test

It conducts UV exposure, thermal cycling, humidity freeze, damp heat and pressure cooker tests to evaluate the reliability of their solar panels.

UV Exposure Test

Thermal Cycling Test

Thermal Cycling Chamber

Accelerated Aging Test

Damp Heat Test

Safety Test

HHI Conducts insulation, wet leakage current, mechanical load, hail and hot spot endurance tests to evaluate the safety of their solar panels.


Wet Leakage Current Test

Hail Test

Hot Spot Endurance Test

Mechanical Load Test

High Reliability Test Standards

Reliability Test IEC Standards  Standards
UV Exposure Test 15kWh/m² Long Term: 1,250kWh/m²
Desert Condition: 3,250kWh/m²
Thermal Cycling Test TC 200 Cycles /
HF 10 Cycles
TC 600 Cycles /
HF 30 Cycles
Damp Heat Test 1,000 hours 3,000 hours
