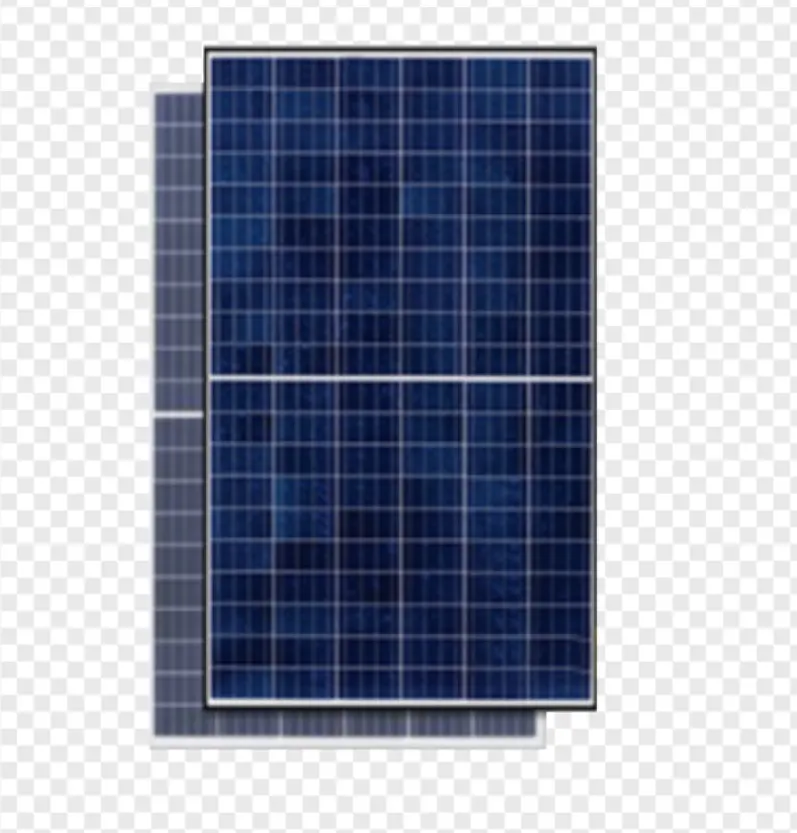

SINO GREEN TwinPeak 2 REC290TP2-BLK 290 Watt Solar Panel

SINO GREEN TwinPeak 2 REC290TP2 290 Watt Solar Panel

SINO GREEN TwinPeak 2 REC290TP2 290 Watt Solar PanelS are premium solar panels with superior performance at a low price. The REC TwinPeak 2 takes the power output of 60-cell multicrystalline panels to groundbreaking new heights with it's twin panel design. This reliable solar panel is ideal for homes or businesses requiring a very efficient, cost-effective solar panel that provides reliable power output.

TwinPeak 2 Series solar panels feature an innovative design using 120 laser cut polysilicon HC solar cells. This results in higher panel efficiency that, when combined with the other optimized components of the module, can provide over 12 watts more power output per panel than traditional polycrystalline technologies. This means optimum use of valuable roof space and reduced balance of system costs.

For residences of all types and sizes, whether the system is a rooftop installation or ground-mount, REC TwinPeak solar panels have an innovative design with high panel efficiency and power output. This means that you can enjoy maximum power in the space available. In parallel, REC TwinPeak panels can deliver a system with the required power using fewer panels.

 TwinPeak 2 REC290TP2 Benefits

CEC PTC Rating of 267.7

More power for more electricity generation

Higher yield through improved performance in shaded conditions

Breakthrough technologies for increased light capture

100% free of Potential Induced Degradation (PID) efficiency losses

Certified for Salt Mist & Ammonia Corrosion Resistance

SINO GREEN is known for leading standards of design and manufacturing to produce long-lasting and high-performance solar panels with reliable power output.

SINO GREEN Solar TwinPeak 2 solar panel benefits

TwinPeak 2 PV technology

 TwinPeak 2 Shade Tolerance

 TwinPeak 2 Solar Panels Are More Shade Tolerant

Solar panels with  TwinPeak 2 technologies have a unique “twin” design, which enables them to generate electricity even when they are partially shaded. Over time, you get a higher yield from your installation.

If any part of a standard 60-cell module is shaded, it will lose at least one string, i.e., 1/3, of its power production and even stop generating electricity fully if shaded across the module width as illustrated to the right.

SINO GREEN TwinPeak 2 REC290TP2 290 Watt Solar Panel Review

 TwinPeak 2 Series solar modules use unique and innovative technologies, and a ground-breaking layout, to give you a high efficiency and high power output product. Based on 120 laser cut polysilicon cells, the REC TwinPeak 2 Series includes four different technologies which together, result in an extra power output of over 12 Watts per module.

 Twin Peak Solar Panel Review

· Half-cut cells: +5 watts

Laser cut polycrystalline cells reduce internal resistance for higher power output, higher efficiency and increased reliability.

· Passivated Emitter Rear Cell (PERC): +4 watts

New generation of cell technology captures more wavelengths of light through mirror-like architecture for higher efficiency.

· 4 Bus Bar: +2 watts

A shorter distance for electrons to travel vastly improves the current flow, reducing resistance in the cell and increasing efficiency.

· Split Junction Box: +1 watt

The three three cell technologies combine in the innovative junction boxes for a higher energy yield, while reducing heat and increasing reliability.

     = 12 watts more power per solar panel

PERC Technology

Passivated Emitter Rear Cell (PERC) technology increases solar cell efficiency through the dielectric layer that reflects back into the cell any light that has passed through to the rear without generating electrons. Through this reflection, the photons are essentially given a second chance to generate current, making more power.

Quality to count on for years to come

The REC290TP2 solar panels feature a weatherproof anodized frame designed to keep its appeal for many years to come. These special 120 HC solar cell PV modules are easy to install with made-to-fit cables and multiple grounding points that reduce the ground wire needed in installation.

Combined with industry-leading product quality and the reliability of a strong and established European brand, REC Twin Peak 2 solar panels are ideal for roof-mounted residential and commercial utility grid-tie solar power systems. These modules combine long lasting product quality with reliable power output. REC combines high quality design and manufacturing standards to produce high-performance solar modules with uncompromising quality.

290TP2 Certifications

UL 1703, Fire classification Type 2; IEC 61215, IEC 61730,

IEC 61701 (Salt Mist - severity level 6), IEC 62804 (PID Free),

IEC 62716 (Ammonia Resistance), ISO 11925-2 (Ignitability Class 1),

UNI 8457/9174 (Class A), ISO 9001:2015, ISO 14001, OHSAS 18001

290TP2 Solar Panel Warranty

10 year product warranty

25 year linear power output warranty

(max. degression in performance of 0.7% p.a. from 97% after the first year)
