Home / 72 Cell Solar Panels / SINO GREEN TwinPeak 340TP Solar Panel - 340 Watts

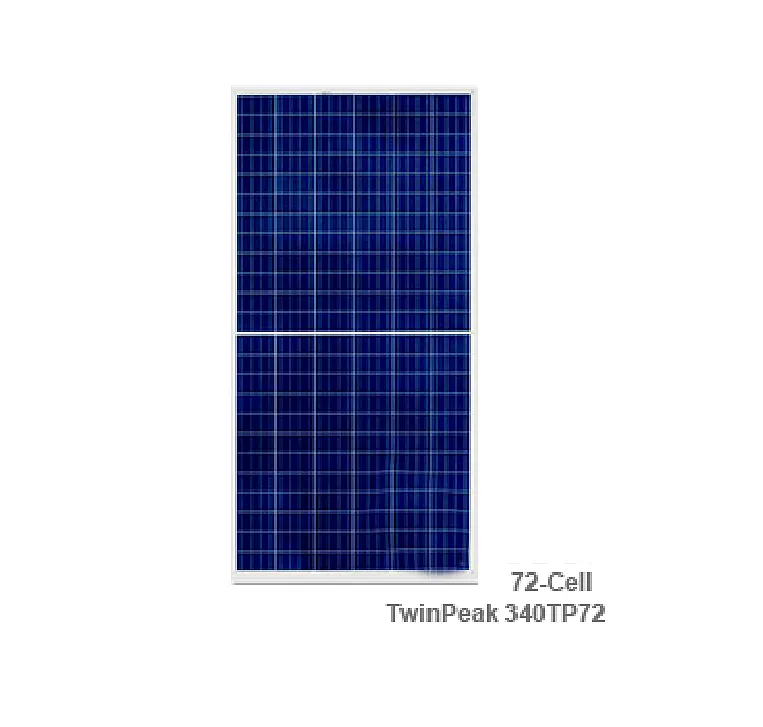

SINO GREEN TwinPeak 340TP Solar Panel - 340 Watts

STC Rating: 340.0
Open Circuit Voltage (V) : 46.3
PTC Rating : 309.3
Short Circuit Current (A) : 9.32
STC Rating340.0
Open Circuit Voltage (V) 46.3
PTC Rating 309.3
Short Circuit Current (A) 9.32
Model Number 340PE72
STC Rating 340.0
PTC Rating 309.3
Open Circuit Voltage (V) 46.3
Short Circuit Current (A) 9.32
Frame Color Silver
Power Tolerance 0/+5%
Module Efficiency 17.1%
Weight (lbs) 61.8
Length (in) 78.4
Width (in) 39.4
Height (in) 1.80

TwinPeak 340TP Solar Panel - 340 Watts

340TP 340 watt solar panels are premium solar panels with superior performance. They features a sleek anodized black frame that is weatherproof and aesthetically pleasing. This reliable solar panel is ideal for homes or businesses requiring a very efficient, cost-effective solar panel that looks great on any rooftop.

TwinPeak Series solar panels feature an innovative design using 120 laser cut polysilicon HC solar cells. This results in higher panel efficiency which can provide over 12 watts more power output per panel than traditional polycrystalline technologies. This means optimum use of valuable roof space and reduced balance of system costs.

TwinPeak 340TP Benefits

CEC PTC Rating of 309.3

More power for more electricity generation

Higher yield through improved performance in shaded conditions

Breakthrough technologies for increased light capture

100% free of Potential Induced Degradation (PID) efficiency losses

Proven reliability of an established European brand

REC is known for leading standards of design and manufacturing to produce long-lasting and high-performance solar panels with reliable power output.

TwinPeak Solar Panels Are More Shade Tolerant

One of the major advantages of the TwinPeak Series compared to standard modules, is its ability to generate electricity even when partially shaded. This helps you to produce more energy over time from your installation. If any part of a standard 60-cell module is shaded, it will lose at least one string, i.e., 1/3, of its power production and even stop generating electricity fully if shaded across the module width.

Passivated Emitter Rear Cell Technology

PERC technology increases solar cell efficiency through the dielectric layer that reflects back into the cell any light that has passed through to the rear without generating electrons. Through this reflection, the photons are essentially given a second chance to generate current, making more power.

TwinPeak 340TP 340 Watt Solar Panel Review

TwinPeak Series solar modules use unique and innovative technologies, and a ground-breaking layout, to give you a high efficiency and high power output product. Based on 120 laser cut polysilicon cells, the TwinPeak Series includes four different technologies which together, result in an extra power output of over 12 Watts per module, a class-leading efficiency of up to 16.6% and set new standards for polycristalline solar modules.

Get more power out of the available space

Packing in the technological advancements shown below means TwinPeak solar modules give you more power output per square meter than standard 60-cell competition. This means that in areas with limited space, such as rooftops, you can fit in more electricity generation capacity and make maximum use of the available space.

Reduce installation time and other balance of system costs

By delivering more power output per square meter, fewer TwinPeak modules are required to achieve the same power generation capacity. This means quicker installation times and fewer components such as clamps and racks – all reducing overall costs.

Lower your energy bills & shorten amortisation time through increased yield and lower costs

TwinPeak Series is certified to IEC 61215, IEC 61730, UL 1703, and JET PVm. It has also been certified for: Salt Mist and Ammonia Corrosion Resistance, Potential Induced Degradation Resistance, Ignitability Resistance, and comes with a 10-year product warranty and 25-year power output warranty.

Quality to count on for years to come

340TP solar panels feature a weatherproof anodized frame designed to keep its appeal for many years to come. These special 120 HC solar cell PV modules are easy to install with made-to-fit cables and multiple grounding points that reduce the ground wire needed in installation.

Combined with industry-leading product quality and the reliability of a strong and established European brand, REC Twin Peak panels are ideal for roof-mounted residential and commercial utility grid-tie solar power systems. These modules combine long lasting product quality with reliable power output. REC combines high quality design and manufacturing standards to produce high-performance solar modules with uncompromising quality.

Committed to sustainability

modules have an industry leading energy payback time of one year. This is a result of innovations such as the new fluidized bed reactor (FBR) silicon production process which uses 80 to 90 percent less energy than traditional methods.

340TP Certifications

UL 1703, - Fire classification Type 2

IEC 61215, IEC 61730;

IEC 61701 (Salt Mist - severity level 1)

340TP Warranty

10 year product warranty.

25 year linear power output warranty

(max. degression in performance of 0.7% p.a.).
