SINO GREEN Wholesale 330W REC TwinPeak REC330TP2S 72 Solar Module

Model Number: 330TP2S 72
PTC Rating: TBD
STC Rating: 330.0
Open Circuit Voltage (V): 46.0
Tags:
Model Number330TP2S 72
PTC RatingTBD
STC Rating330.0
Open Circuit Voltage (V)46.0
Short Circuit Current (A) 9.22
Frame Color Silver
Power Tolerance 0/+5 Watts
Weight (lbs) 48.5
Length (in) 78.9
Width (in) 39.4
Height (in) 1.2

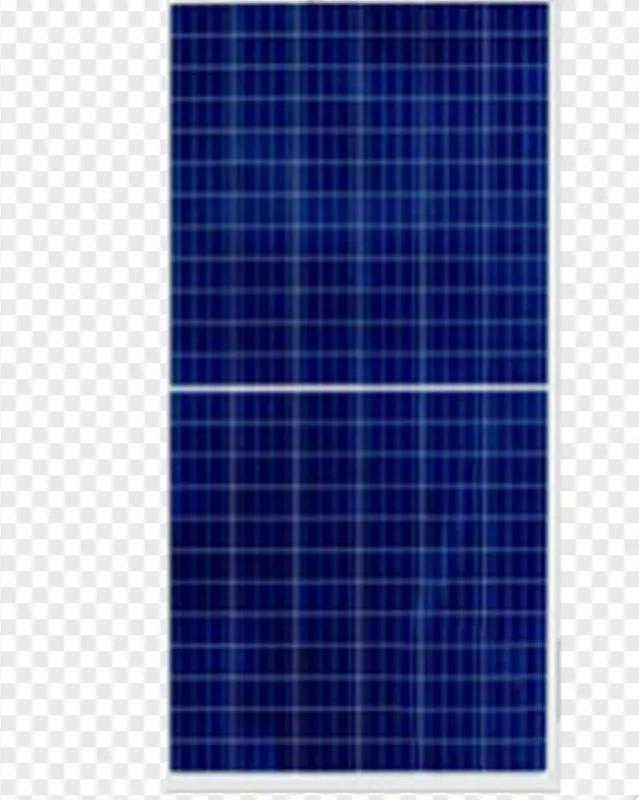

SINO GREEN TwinPeak REC330TP2S 72 Solar Module - 330 Watt

SINO GREEN Solar's TwinPeak REC330TP2S 72 solar panels are premium solar panels with superior performance. The SINO GREEN TwinPeak 2S takes the power output of 72-cell multicrystalline panels to groundbreaking new heights with it's twin panel design. This reliable solar panel is ideal for commercial PV installations requiring a very efficient, cost-effective solar panel with reliable power output.

TwinPeak silver frame

 TwinPeak 2S 72 Series solar panels feature an innovative design using 144 laser cut polysilicon HC solar cells. This results in higher panel efficiency which can provide over 12 watts more power output per panel than traditional polycrystalline technologies. This means optimum use of valuable roof space and reduced balance of system costs.


For commercial PV power plants of all types and sizes, REC TwinPeak solar panels have an innovative design with high panel efficiency and power output. This means that you can enjoy maximum power in the space available. In parallel, REC TwinPeak panels can deliver a system with the required power using fewer panels.

  TwinPeak 2 REC330TP2S 72 Benefits

High CEC PTC Rating

More power for more electricity generation

Higher yield through improved performance in shaded conditions

Breakthrough technologies for increased light capture

100% free of Potential Induced Degradation (PID) efficiency losses

Certified for Salt Mist & Ammonia Corrosion Resistance

REC is known for leading standards of design and manufacturing to produce long-lasting and high-performance solar panels with reliable power output.


REC

TwinPeak 2 PV technology

TwinPeak 2S 72 Modules Are More Shade Tolerant

Solar panels with REC TwinPeak 2S technologies have a unique “twin” design, which enables them to generate electricity even when they are partially shaded. Over time, you get a higher yield from your installation.


If any part of a standard 72-cell module is shaded, it will lose at least one string, i.e., 1/3, of its power production and even stop generating electricity fully if shaded across the module width as illustrated to the right.




  TwinPeak REC330TP2S 72 330 Watt Solar Panel Review

TwinPeak 2 Technology

REC TwinPeak 2S 72 Series solar modules use unique and innovative technologies, and a ground-breaking layout, to give you a high efficiency and high power output product. Based on 120 laser cut polysilicon cells, the REC TwinPeak 2 Series includes four different technologies which together, result in an extra power output of over 12 Watts per module.

  Twin Peak 2S 72 Solar Panel Review

· Half-cut cells: +5 watts

Laser cut polycrystalline cells reduce internal resistance for higher power output, higher efficiency and increased reliability.


· Passivated Emitter Rear Cell (PERC): +4 watts

New generation of cell technology captures more wavelengths of light through mirror-like architecture for higher efficiency.


· 4 Bus Bar: +2 watts

A shorter distance for electrons to travel vastly improves the current flow, reducing resistance in the cell and increasing efficiency.


· Split Junction Box: +1 watt

The three three cell technologies combine in the innovative junction boxes for a higher energy yield, while reducing heat and increasing reliability.


     = 12 watts more power per (square meter)


PERC Technology

PERC passivated emitter rear cell




Passivated Emitter Rear Cell (PERC) technology increases solar cell efficiency through the dielectric layer that reflects back into the cell any light that has passed through to the rear without generating electrons. Through this reflection, the photons are essentially given a second chance to generate current, making more power.





Quality to count on for years to come

The SINO GREEN 330TP2S 72 solar panels feature a weatherproof anodized frame designed to keep its appeal for many years to come. These special 120 HC solar cell PV modules are easy to install with made-to-fit cables and multiple grounding points that reduce the ground wire needed in installation.


Combined with industry-leading product quality and the reliability of a strong and established European brand, REC Twin Peak 2S 72 solar panels are ideal for roof-mounted commercial utility grid-tie solar power systems. These modules combine long lasting product quality with reliable power output. REC combines high quality design and manufacturing standards to produce high-performance solar modules with uncompromising quality.





SINO GREEN 330TP2S 72 Certifications


Pending: UL 1703, UL Fire Type 2, CEC listed

ISO 9001: 2015, ISO 14001: 2004, OHSAS 18001: 2007


SINO GREEN 330TP2S 72 Solar Panel Warranty


10 year product warranty

25 year linear power output warranty

(max. degression in performance of 0.7% p.a. from 97% after the first year)
