Home / 72 Cell Solar Panels / SINO GREEN Solar CS6U-330P 330W MAXPOWER Solar Panel

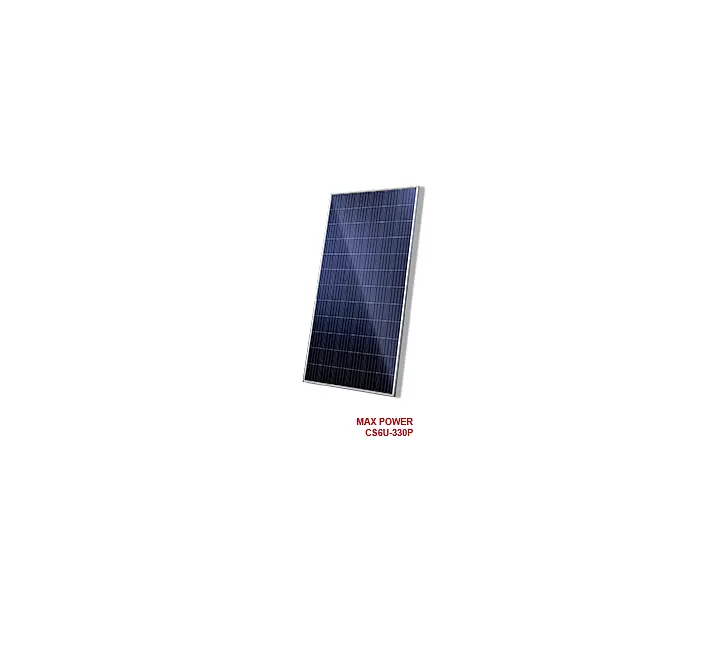

SINO GREEN Solar CS6U-330P 330W MAXPOWER Solar Panel

STC Rating: 330.0 Watts
Open Circuit Voltage (V) : 45.6 V
PTC Rating : 304.1
Short Circuit Current (A) : 9.45 A
Tags:
STC Rating330.0 Watts
Open Circuit Voltage (V) 45.6 V
PTC Rating 304.1
Short Circuit Current (A) 9.45 A
CSI Model Number CS6U-330P
STC Rating 330.0 Watts
PTC Rating 304.1
Efficiency 16.97%
Open Circuit Voltage (Voc) 45.6 V
Short Circuit Current (Isc) 9.45 A
Frame Color Silver
Origin China
Power Tolerance 0 / +5 Watts
Weight (lbs) 49.4
Length (in) 78.7
Width (in) 39.1
Height (in) 1.57

Solar CS6U-330P 330W MAXPOWER Solar Panel

The 330 watt CS6U330P solar panel features  reliable P-type silicon solar cells with an efficient 4BB 4-busbar design. An enhanced 40 mm frame ensures the robustness of this solar panel for up to a 5400 Pa load.

Using the latest innovative cell technology, this  Solar MAXPOWER 72-cell solar panel features increased module power output and system reliability. Ensured by 15 years of experience in module manufacturing, MAXPOWER solar panels feature a well-engineered module design, stringent BOM quality testing, an automated manufacturing process and 100% EL testing.

Reliable 4BB P-type solar cells

Sturdy aluminum frame

PV wire w/ T4 (MC4 comparable) connectors

Reassuring power tolerance of +5W

5400 Pa snow load rating

The CS6U330P has a top ranking PTC of 304.1

MAXPOWER 72-cell solar panels are ideal for:

On-grid commercial / industrial rooftops

On-grid residential ground mount solar systems

Solar power stations, solar carports

Other on-grid applications

CS6U-330P Solar Panel Certifications

Management System Certificates

ISO 9001:2008 / Quality management system

ISO 14001:2004 / Standards for environmental management system

OHSAS 18001:2007 / International standards for occupational health & safety


Product Certificates

UL 1703 / IEC 61215 performance: CEC listed (US) / FSEC (US Florida)

UL 1703: CSA / IEC 61701 ED2: VDE / IEC 62716: VDE

UNI 9177 Reaction to Fire: Class 1

IEC 61215 / IEC 61730: VDE / CE / CQC / MCS / INMETRO / CEC AUT

IEC 60068-2-68: SGS

Take-e-way

Solar CS6U-330P Solar Panel Warranty

10 Year

Product warranty on materials and workmanship

25 Year

Linear power output warranty

Canadian Solar MAXPOWER 72-Cell Solar Modules - Engineered For Reliability


359 quality control points

158 of Canadian Solar's 359 quality control points are for incoming materials, while 62 are for raw materials processes and the others for production control.


Electroluminescence testing

A 100% EL screen test to eliminate cell or module defects


Testing and analysis

Performance reliability, mechanical and chemical tests of raw materials and components


Machine testing

Advanced automatic equipment in testing and manufacturing process


Lab testing

Canadian Solar is the first module manufacturer-owned photovoltaic reliability testing laboratory to meet ISO/IEC 17025 standards


Cleaning

100% module visual inspection and clean before packing


Solar

A Trusted Name in in the Solar Industry

A global bankable brand, top ranking amongst module manufacturers by industry analysts.

Dedicated customer support teams are staffed by technical support engineers and after-sale customer service representatives.
