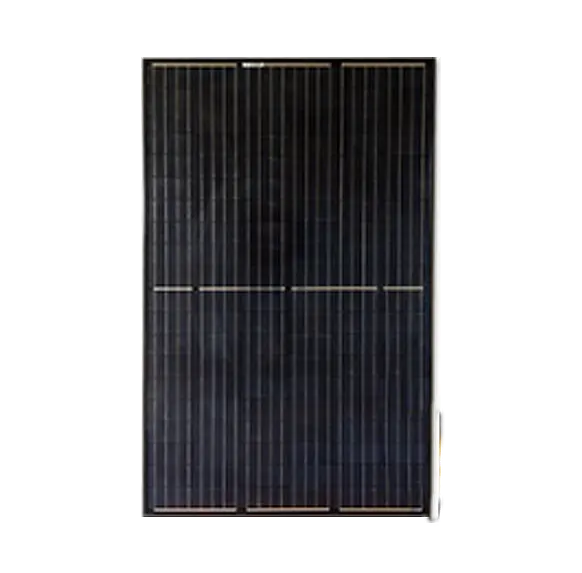

SINO GREEN TwinPeak 2 REC285TP2-BLK2 285W Black Solar Panel

Model Number: 285TP2 BLK2
PTC Rating: 257.0
STC Rating: 285.0
Open Circuit Voltage (V): 38.6
Tags:
Model Number285TP2 BLK2
PTC Rating257.0
STC Rating285.0
Open Circuit Voltage (V)38.6


Short Circuit Current (A) 9.40
Frame Color Full Black
Power Tolerance 0/+5 Watts
Weight (lbs) 40.8
Length (in) 65.94
Width (in) 39.25
Height (in) 1.5






SINO GREEN TwinPeak 2 REC285TP2-BLK2 285W Black Solar Panel

TwinPeak 2 BLK2 Full Black review

SINO GREEN Solar's TwinPeak 2  285TP2S BLK2 solar panels are premium solar panels with superior performance. The SINO GREEN TwinPeak 2 takes the power output of 60-cell multicrystalline panels to groundbreaking new heights with it's twin panel design using 120 REC HC solar cells. This reliable solar panel is ideal for residential PV installations requiring a very efficient, cost-effective solar panel with reliable power output.

SINO GREEN TwinPeak 2 BLK2 Series solar panels feature an innovative design using 120 laser cut polysilicon HC solar cells. This results in higher panel efficiency which can provide over 12 watts more power output per panel than traditional polycrystalline technologies. This means optimum use of valuable roof space and reduced balance of system costs.

  TwinPeak 2 REC285TP2 BLK2 Benefits

TwinPeak 2 PV technology

  TwinPeak 2 solar panels feature a twin-panel design that allows for power production if partially shaded.

Black frame and black backsheet for a sleek modern appearance

High CEC PTC Rating

More power for more electricity generation

Higher yield through improved performance in shaded conditions

Breakthrough technologies for increased light capture

100% free of Potential Induced Degradation (PID) efficiency losses

Certified for Salt Mist & Ammonia Corrosion Resistance

TwinPeak 2 BLK2 Modules Are More Shade Tolerant

One of the major advantages of the REC TwinPeak 2 Series compared to standard modules, is its ability to generate electricity even when partially shaded. This helps you to produce more energy over time from your installation. If any part of a standard 60-cell module is shaded, it will lose at least one string, i.e., 1/3, of its power production and even stop generating electricity fully if shaded across the module width.


SINO GREEN is known for leading standards of design and manufacturing to produce long-lasting and high-performance solar panels with reliable power output.




SINO GREEN TwinPeak 2 REC285TP2 BLK2 285W Solar Panel Review

TwinPeak 2 Technology

SINO GREEN TwinPeak 2 BLK 2 Series solar modules use unique and innovative technologies, and a ground-breaking layout, to give you a high efficiency, high power output PV module with a dark aesthetically pleasing appearance. Based on 120 laser cut polysilicon cells, the REC TwinPeak 2 Series includes four different technologies which together, result in an extra power output of over 12 Watts per module.

  Twin Peak 2 BLK2 Solar Panel Review

· Half-cut cells: +5 watts

Laser cut polycrystalline cells reduce internal resistance for higher power output, higher efficiency and increased reliability.


· Passivated Emitter Rear Cell (PERC): +4 watts

New generation of cell technology captures more wavelengths of light through mirror-like architecture for higher efficiency.


· 4 Bus Bar: +2 watts

A shorter distance for electrons to travel vastly improves the current flow, reducing resistance in the cell and increasing efficiency.


· Split Junction Box: +1 watt

The three three cell technologies combine in the innovative junction boxes for a higher energy yield, while reducing heat and increasing reliability.


     = 12 watts more power per (square meter)


PERC Technology

PERC passivated emitter rear cell




Passivated Emitter Rear Cell (PERC) technology increases solar cell efficiency through the dielectric layer that reflects back into the cell any light that has passed through to the rear without generating electrons. Through this reflection, the photons are essentially given a second chance to generate current, making more power.





Quality to count on for years to come

The REC285TP2 BLK2 solar panel features a weatherproof black anodized frame designed to keep its appeal for many years to come. These special 120 HC solar cell PV modules are easy to install with made-to-fit cables and multiple grounding points that reduce the ground wire needed in installation.


Combined with industry-leading product quality and the reliability of a strong and established European brand, SINO GREEN Twin Peak 2 BLK solar panels are ideal for roof-mounted residential grid-tie solar power systems. These modules combine long lasting product quality with reliable power output. REC combines high quality design and manufacturing standards to produce high-performance solar modules with uncompromising quality.


Committed to sustainability

SINO GREEN modules have an industry leading energy payback time of one year. This is a result of innovations such as the new fluidized bed reactor (FBR) silicon production process which uses 80 to 90 percent less energy than traditional methods.




SINO GREEN 285TP2 BLK2 Certifications

UL 1703, Fire classification Type 2; IEC 61215, IEC 61730,

IEC 62804 (PID Free), IEC 61701 (Salt Mist Level 6),

IEC 62716 (Ammonia Resistance),

ISO 9001:2015, ISO 14001, OHSAS 180017


SINO GREEN TwinPeak 2 BLK2 Solar Panel Warranty

10 year product warranty

25 year linear power output warranty

(max. degression in performance of 0.7% p.a. from 97% after the first year to 80.2% of nameplate power output by the end of 25 years.)
